BASIC HELP : MANDRAGORE by MS4script

2026 version 1.10

Chapter 6 : CHARTS

KEYWORD : FormPlus : DRAWBAR

Definition

Based on the FormPlus graphics library, displays VERTICAL, HORIZONTAL, STACKED, LINE or AREA bar charts.

Syntax


	Simple :

	 FormPlus :	DrawBAR  ,  title : string/literal ,
	  TYPE : integer, FORMAT: string/literal  use View  ("Table Name or $MS4VIEWDBTMP ");

	or

	FormPlus : optional theme : string/literal
	DrawBAR , optional height : integer, 	width :integer ,
	title :string/literal ,
      TYPE : integer, FORMAT: string/literal  use View  ("Table Name or $MS4VIEWDBTMP ");



Example 1


#include "#SYSPATHMANDRAGORE+\zInclude\includeChart.h"

 DBconnect{Ms4DB}(LEnvDemoExcelDB);
 FormPlus : DrawBAR, title : "  Business 2012 by  EMPLOYEE "  , TYPE : $COLUMN , FORMAT :"$"
                        use View   ("[ms4EmplTotalBusiness2012]")  ;

 FormPlus : theme : "blueopal"    DrawBAR , height : "430",  width :"730", title :"" ,
  TYPE : $STANDARD, FORMAT: "pers"  use View  ("[ms4TotalPopulByProvince]");


Example 2 : $MS4DBTMP : NB: This example can be applied to any and all chart types


#include  "#SYSPATHMANDRAGORE+\zInclude\includeChart.h"
text :   tabname :="ms4EmplTotalBusiness2011"  ,varname := "%a%";

DBconnect{ms4DB}(LEnvDemoExcelDB);
Ms4_query{ms4db}  option : into  $MS4DBTMP
  (" SELECT  *    from  [%s]   as a  where a.LASTNAME LIKE '%s' ",tabname,varname) ;

  DBconnect{Ms4DB}($MS4DBTMP);

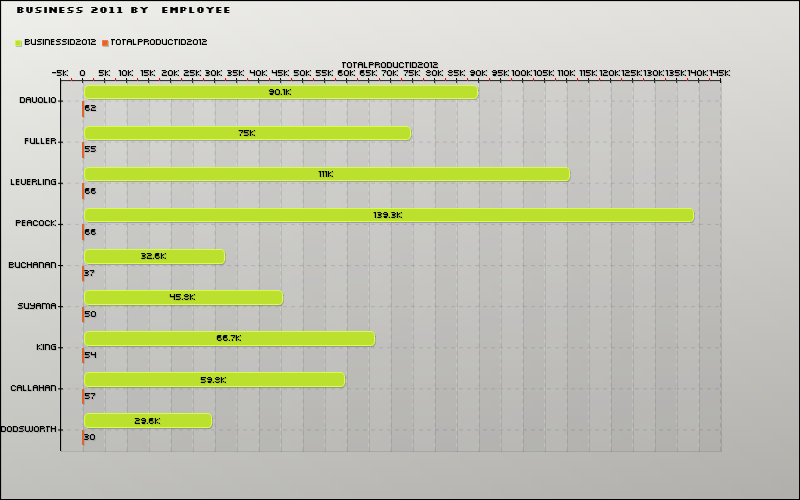

	 FormPlus  :	DrawBAR , title :" Business 2011 by  EMPLOYEE " ,
	 TYPE :  $COLUMN,  FORMAT: "$"  use View ($MS4VIEWDBTMP)   ;


DrawBAR, Business 2012 by EMPLOYEE
