BASIC HELP : MANDRAGORE by MS4script

2026 version 1.10

Chapter 6 : CHARTS

KEYWORD : FormPlus : DRAWRADAR

Definition

Based on the FormPlus graphics library, displays COLUMN, LINE or AREA types of RADAR chart

Syntax


	Simple :

	FormPlus :	DrawRADAR ,  title : string/literal ,
	  TYPE : integer   use View  ("Table Name or $MS4VIEWDBTMP ");

	or

	FormPlus : optional theme : string/literal
	DrawRADAR , optional height : integer, 	width :integer ,
	title :string/literal ,
      TYPE : integer  use View  ("Table Name or $MS4VIEWDBTMP ");

	  TYPE: integer= $RDLine or $RDColumn or $RDAera



Example 1


#include "#SYSPATHMANDRAGORE+\zInclude\includeChart.h"

 DBconnect{Ms4DB}(LEnvDemoExcelDB);
 	  FormPlus :	DrawRADAR, title : "  RADAR Line  Business 2011 by  EMPLOYEE "  , TYPE : $RDLINE
			use View   (" [ms4EmplTotalBusiness2012]")  ;

 FormPlus : theme : "blueopal"    DrawRADAR , height : "430",  width :"730",
 	title : "  RADAR Line  Business 2011 by  EMPLOYEE "  , TYPE : $RDCOLUMN
			use View   (" [ms4EmplTotalBusiness2012]")  ;


Example 2 : $MS4DBTMP : Note : this example can be applied to any and all types of chart.


#include "#SYSPATHMANDRAGORE+\zInclude\includeChart.h"
text :   tabname :="ms4EmplTotalBusiness2011"  ,varname := "%a%";

DBconnect{ms4DB}(LEnvDemoExcelDB);
Ms4_query{ms4db}  option : into  $MS4DBTMP
  (" SELECT  *    from  [%s]   as a  where a.LASTNAME LIKE '%s' ",tabname,varname) ;

  DBconnect{Ms4DB}($MS4DBTMP);
	FormPlus :	DrawRADAR , title :" Business 2011 by  EMPLOYEE " ,
	TYPE : $RDCOLUMN    use   View  ($MS4VIEWDBTMP)   ;

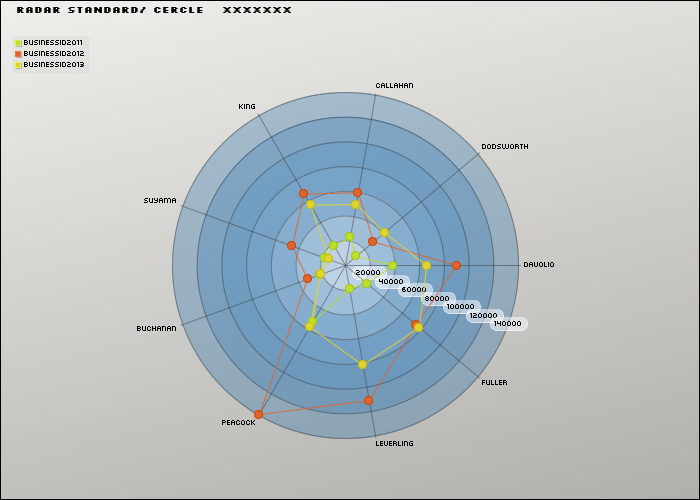

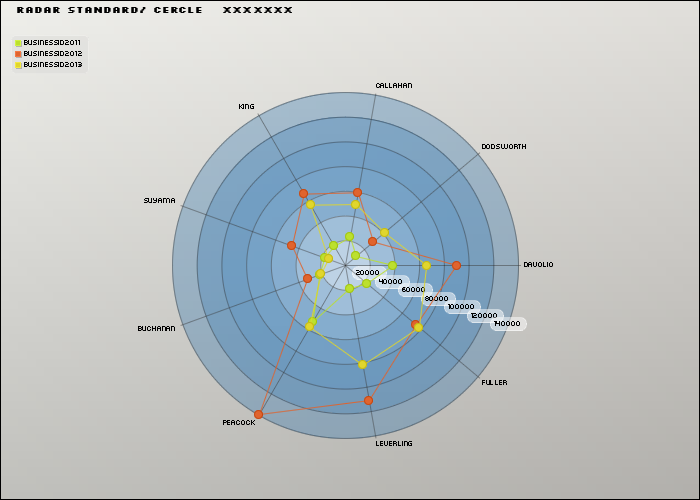

Plus : DrawRadar standard

RADAR Line Business 2011 by EMPLOYEE
