     BASIC HELP : MS4BI by MS4script
   2022 version 1.10

Chapter 11 : Responsive UI

KEYWORD : NOTIFICATION

Definition

In a division block, defines a NOTIFICATION : icon, message , url , text of url with or without a Dismissable attribute

Reminder:

A division is represented by < open division ....> close division

Syntax


 <NOTIFICATION   : attribute ,
             icon   (optional) : (attribut  $Icon Largeur )   +   Name icon   ,
			 text   (optional) : " literal  your message",
			 url    (optional) : " literal  your url",text : (optional) " literal  your url"

> ;(End Div NOTIFICATION   )

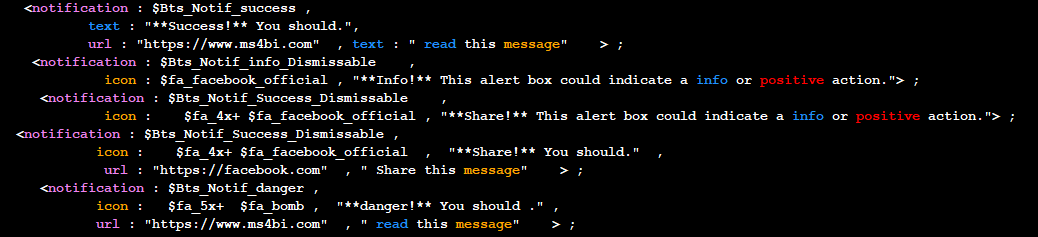

Example 1




 NOTIFICATION UI

Output example 1

Notifications & Icon & Link & Dismissable


Success! You should read this message
× Info! This alert box could indicate info or apositive action.
× Share! This alert box could indicate info or positive action.
× Share! You should share this message
Danger! You should read this message
Visualise ALL Examples : UI

Prerequisites

#includeSYSpathMS4BI "zInclude\includeChart.h"
- Customisation: all the attributes can be declared in "zInclude\includeChart.h" or another filename.h

Remarks

This example :
driver::\MandragorePlanete\MS4BI\02-DEMO-DESKTOP-BI-EXCELandSTANDARD\90-OTHERS-UI
- We based our main UIs on the widely known and disributed Bootstrap conventions
- The content of a notification may include all the MarkerDown abbreviations
Attributes that are currently included in includeChart.h:
$Bts_Notif_success
$Bts_Notif_info
$Bts_Notif_warning
$Bts_Notif_danger
$Bts_Notif_success_dismissable
$Bts_Notif_info_dismissable
$Bts_Notif_warning_dismissable
$Bts_Notif_danger_dismissable

  Visualise MarkerDown Syntax

  Source & Copy MarkerDown Syntax

See also

PANEL, ICON, TEXT , LIST_GROUP ; BEGIN_DIV : Table, Frame, NOTIFICATION
