BASIC HELP : MS4BI by MS4script

2022 version 1.10

Chapter 11 : Responsive UI

KEYWORD : PANEL

Definition

In a division block, defines a PANEL : BLOC HEADER, BLOC BODY and BLOC FOOTER

Reminder:

A division is represented by < open division ....> close division

Syntax


 <PANEL  : attribute ,
  <PANEL_HEADER :" literal 1 your text", code MS4script (optional)>
     <PANEL_BODY  :
              code MS4script
	 >
     <PANEL_FOOTER :attribute(optional) , " literal 2 your text",  MS4script code (optional) ..>
> ;(End Div PANEL_HEADER  )

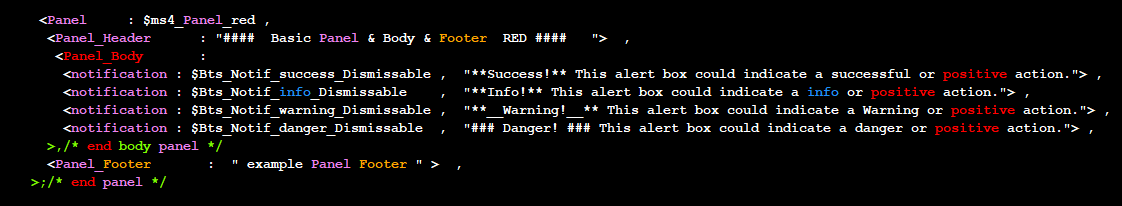

Example 1





PANEL UI

Output example 1

Basic Red Panel & Body & Footer

×Success! This alert box could indicate a successful or positive action.
×Info! This alert box could indicate info or a positive action.
×Warning! This alert box could indicate a Warning or positive action.
×

Danger!

This alert box could indicate an alert or positive action.
Visualise ALL Examples : UI

Prerequisites

#includeSYSpathMS4BI "zInclude\includeChart.h"
- Customisation: all the attributes can be declared in "zInclude\includeChart.h" or another filename.h

Remarks

This example :
driver::\MandragorePlanete\MS4BI\02-DEMO-DESKTOP-BI-EXCELandSTANDARD\90-OTHERS-UI
- We based our main UIs on the widely known and disributed Bootstrap conventions
- The content of a panel may include all the MarkerDown abbreviations
Atributes that are currently included in includeChart.h:
$Bts_Panel_default
$Bts_Panel_primary
$Bts_Panel_success
$Bts_Panel_info
$Bts_Panel_warning
$Bts_Panel_danger
$ms4_Panel_white
$ms4_Panel_yellow
$ms4_Panel_red
$ms4_Panel_green

See also

PANEL, ICON, TEXT , LIST_GROUP ; BEGIN_DIV : Table, Frame, NOTIFICATION
