BASIC HELP : MS4BI Designer by MS4script
   2021 version 1

FORM (input)

KEYWORD :
BEGIN_FORM inputdata,Inputselect...Submit()... END_FORM


Begin_transaction ; nameTRS
  cycle : insert table xxxx, update table xzzzzn delete Row table xx..
  begin_form
   input var1 ..Input var2..submit
   End_form ;
       Chart or dashboard or image or grid....
  End_transaction ;

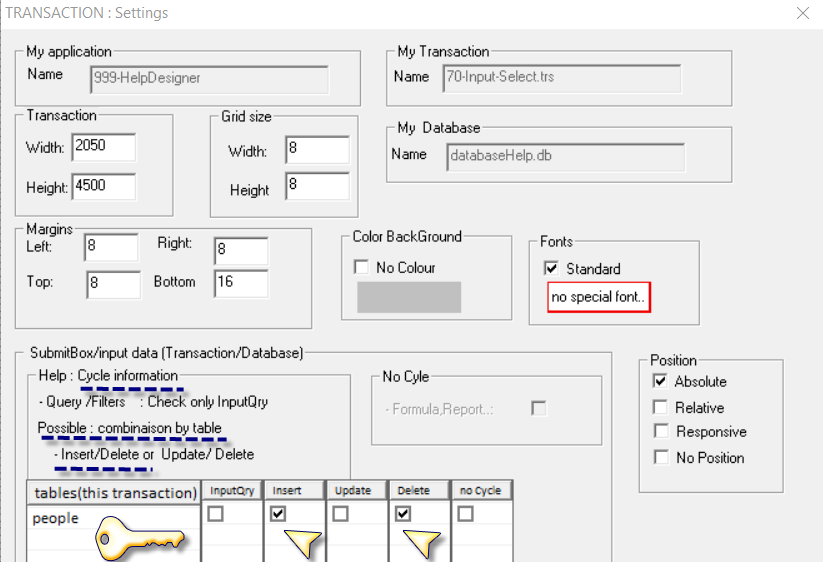

Demarche & Option Setting

→

→

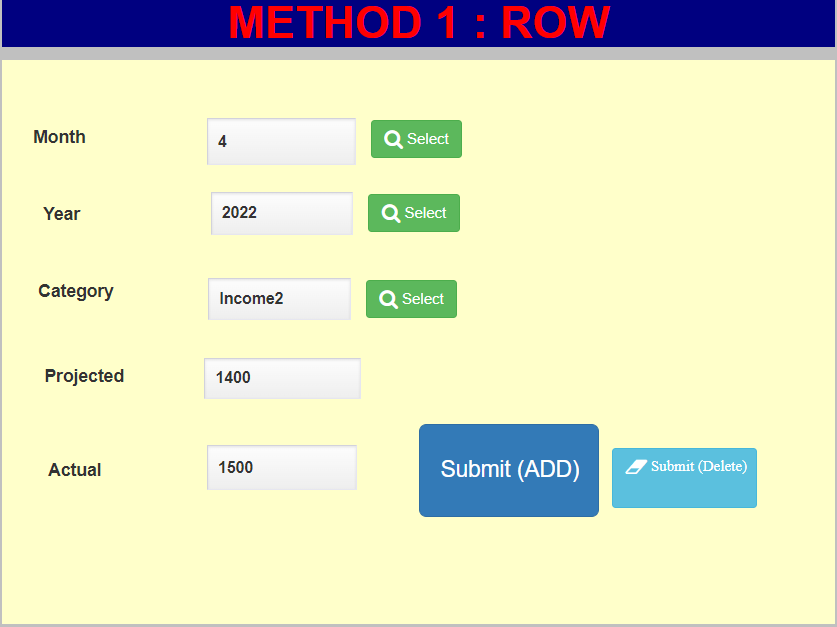

Example 1


 Begin_TransactionWeb : "02-DataEditADD" ,
    Cycle :
   Insert :  table "Family"
   Delete : table "Family" ;
  
Begin_FormWeb ** INSERT
   position:367,367,38,119 :
  <InputSelect  : type="int"  name="MONTH" like : table("Family")  class=standardMs4  placeholder="please select-MONTH-"   >;
   position:369,498,auto,auto :
   < button + GetSelectPop()  :  $Bts_btn_success_btn_sm  ,  icon   :  $fa_1x + $fa_search  , text : "Select" > ;
   position:426,370,35,114 :
  <InputSelect:  type="int" name="YEAR"  like : table("Family")   class=standardMs4   placeholder="please select-YEAR-"   >;
   position:428,496,auto,auto :
  <button + GetSelectPop()  :  $Bts_btn_success_btn_sm  ,  icon   :  $fa_1x + $fa_search  , text : "Select" > ;
   position:559,365,33,125 :
   <InputData  : type="real"  name="PROJECTED"     like : table("Family")     class=standardMs4       placeholder="-0-"   >;
   position:629,367,36,120 :
  <InputData: type="real" name="ACTUAL"  like : table("Family") class=standardMs4       placeholder="-ACTUAL-"  >;
   position:612,537,74,144 :
  <InputData:   type=SubmitForm()   class="btn btn-lg btn-primary" attrib="value='Submit (ADD)' "  >;
  
 End_FormWeb ;
  
 Begin_FormWeb  ** DELETE
   position  : 631,691,48,116:
 <button +  SetDeleteRow("Family" )   :  $Bts_btn_info_btn_sm  ,  icon   :  $fa_1x + $fa_eraser  , text : "Submit (Delete)" > ;
  
 End_FormWeb ;
   ....
